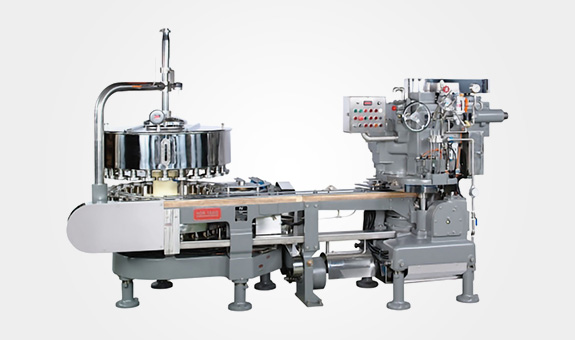

Filling and sealing machine
The power driven by the machine is supplied by a single horsepower of the can sealing machine
Product introduction and technical parameters
This machine is a gravity automatic filling machine with 24 filling heads, which can be used for low-viscosity liquids and sauces, such as fruit juice, vegetable juice, fresh orange juice, grape juice, tomato juice, herb honey juice and other easily foaming liquids. Strong machine structure and multiple safety design, not only the machine is easy to operate, easy maintenance, and simplified tank replacement design, the replacement is more simple and quick.
The machine features
1. Add sugar evenly
2. Suitable for foaming liquids
3. Three-point liquid level control
4. Convenient and rapid type change. Easy to clean and maintain
5. The components of soup head, soup bucket and no soup contact are all made of stainless steel
6. The power driven by the machine is supplied by a single horsepower of the can sealing machine, which can be operated synchronously
Technical parameters
|
Model |
HY-GF24 |
HY-GF36 |
HY-GF44 |
|
Filling head |
24 |
36 |
44 |
|
Apply to tank diameter |
202 - 401D (52 - 99mm) |
202 - 401D (52 - 99mm) |
202 - 211D (52 - 65mm) |
|
Apply high pot |
65 - 180 mm |
65 - 180 mm |
65 - 180 mm |
|
Capacity |
up to 250 - 350 cpm |
up to 400 -500 cpm |
up to 550 -650 cpm |
|
Filling barrel diameter |
1150 mm |
1728 mm |
1728 mm |
|
Bucket capacity |
200 L |
210 L |
210 L |
|
High |
1670 mm |
1670 mm |
1670 mm |
|
The transmission way |
Taken off from Seamer |
Taken off from Seamer |
Taken off from Seamer |
|
Into the tank height |
900 mm |
900 mm |
900 mm |
|
Outlet height |
900 mm |
900 mm |
900 mm |
|
Net weight (approx.) |
2250 kgs |
2350 kgs |
2350 kgs |
|
Model |
HY-GF55 |
HY-GF55D |
HY-GF45 |
|
Filling head |
55 |
55 |
45 |
|
Apply to tank diameter |
202 - 211D (52 - 65mm) |
202 - 211D (52 - 65mm) |
202 - 401D (52 - 99mm) |
|
Apply high pot |
65 - 180 mm |
65 - 180 mm |
65 - 180 mm |
|
Capacity |
up to 650 - 750 cpm |
up to 650 - 750 cpm |
up to 450 -550 cpm |
|
Filling barrel diameter |
2010mm |
2010mm |
2010 mm |
|
Bucket capacity |
250 L |
250 L |
250 L |
|
High |
1670 mm |
1670 mm |
1670 mm |
|
The transmission way |
Taken off from Seamer |
Taken off from Seamer |
Taken off from Seamer |
|
Into the tank height |
900 mm |
900 mm |
900 mm |
|
Outlet height |
900 mm |
900 mm |
900 mm |
|
Net weight (approx.) |
3930 kgs |
3930 kgs |
3750 kgs |
